Frozen Series
RF 750
Up to -20°C
The RF 750 is our heavy-duty flagship model designed for large-capacity trucks, engineered to maintain precise sub-zero environments over long-haul routes.

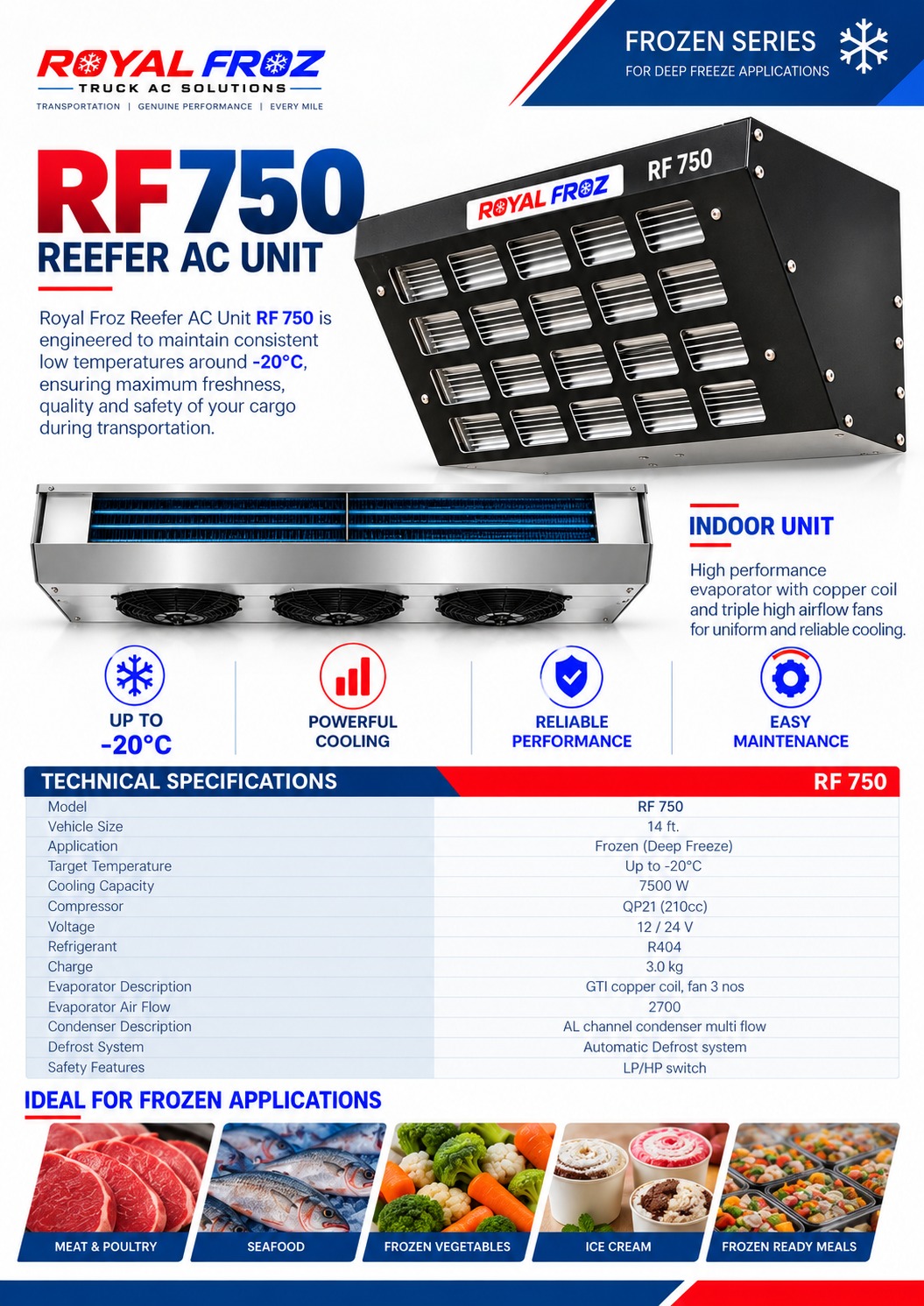

Click image to view full size
Need Help Choosing the Right Freezer Unit?
Get expert recommendations, custom specifications, or speak directly with our engineering team for your fleet requirements.
Contact Our TeamTechnical Specifications
| Specification | RF 750 Details |
|---|---|
| Vehicle Size | 14 ft. |
| Application | Frozen (Deep Freeze) |
| Target Temperature | Up to -20°C |
| Cooling Capacity | 4500 W |
| Compressor | QP21 (210cc) |
| Voltage | 12 / 24 V |
| Refrigerant & Charge | R404 – 3.0 kg |
| Air Flow | 2700 m³/h |
| Evaporator Description | GTI copper coil, fan 3 nos |
| Evaporator Dimensions (W×H×D) | 960 × 470 × 150 mm |
| Condenser Description | AL channel condenser multi flow |
| Condenser Dimensions (W×H×D) | 1080 × 520 × 198 mm |
| Defrost System | Automatic Defrost system |
| Safety Features | LP/HP switch |
