Frozen Series
RF 450
Up to -20°C
The RF 450 delivers reliable deep-freeze performance, built for 8 ft. transport vehicles requiring consistent sub-zero temperature integrity.

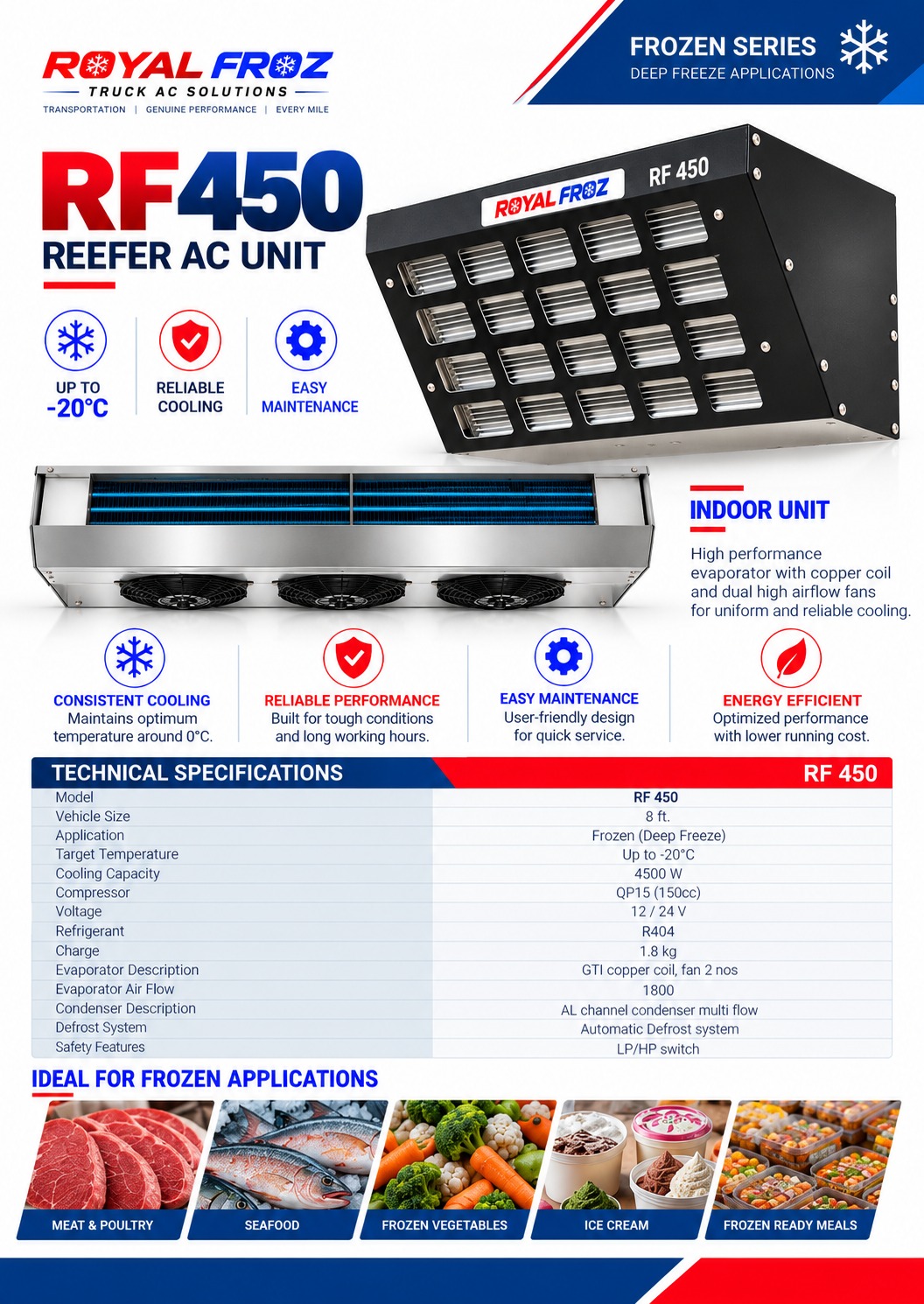

Click image to view full size
Technical Specifications
| Specification | RF 450 Details |
|---|---|
| Vehicle Size | 8 ft. |
| Application | Frozen (Deep Freeze) |
| Target Temperature | Up to -20°C |
| Cooling Capacity | 4500 W |
| Compressor | QP15 (150cc) |
| Voltage | 12 / 24 V |
| Refrigerant & Charge | R404 – 1.8 kg |
| Air Flow | 1800 m³/h |
| Evaporator Description | GTI copper coil, fan 2 nos |
| Evaporator Dimensions (W×H×D) | 800 × 470 × 150 mm |
| Condenser Description | AL channel condenser multi flow |
| Condenser Dimensions (W×H×D) | 920 × 490 × 188 mm |
| Defrost System | Automatic Defrost system |
| Safety Features | LP/HP switch |
