Chiller Series

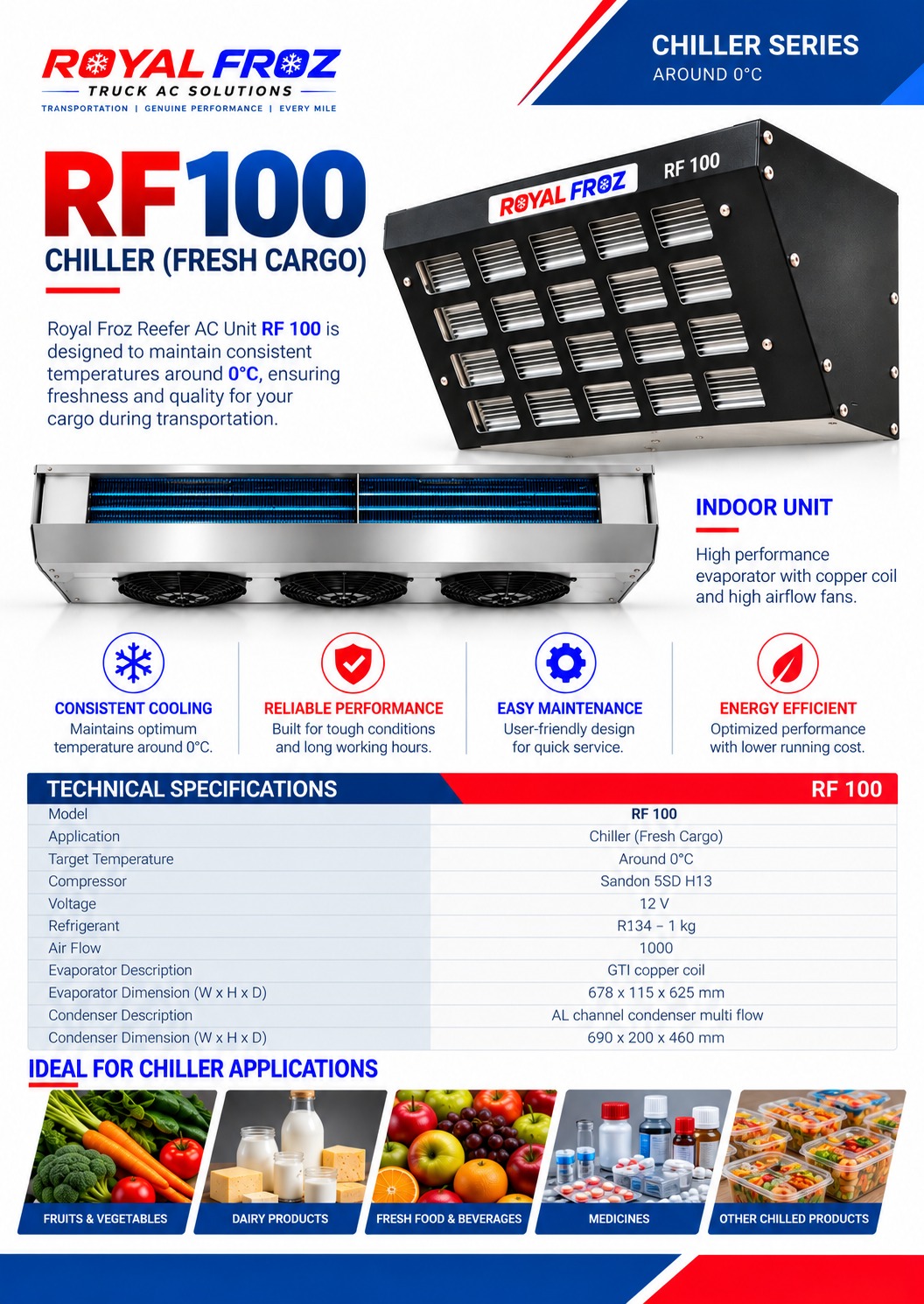

RF 100
Around 0°C
The RF 100 offers reliable temperature control around 0°C, custom-built for light commercial delivery trucks distributing perishables and beverages.
Click image to view full size
Need Help Choosing the Right Chiller Unit?
Get expert recommendations, custom specifications, or speak directly with our engineering team for your fleet requirements.
Contact Our TeamTechnical Specifications
| Specification | RF 100 Details |
|---|---|
| Application | Chiller (Fresh Cargo) |
| Target Temperature | Around 0°C |
| Compressor | Sandon SD5 H13 |
| Voltage | 12 V |
| Refrigerant | R134 – 1 kg |
| Air Flow | 1000 m³/h |
| Evaporator Description | GTI copper coil |
| Evaporator Dimensions (W×H×D) | 678 × 115 × 625 mm |
| Condenser Description | AL channel condenser multi flow |
| Condenser Dimensions (W×H×D) | 690 × 200 × 460 mm |
